CAD Models

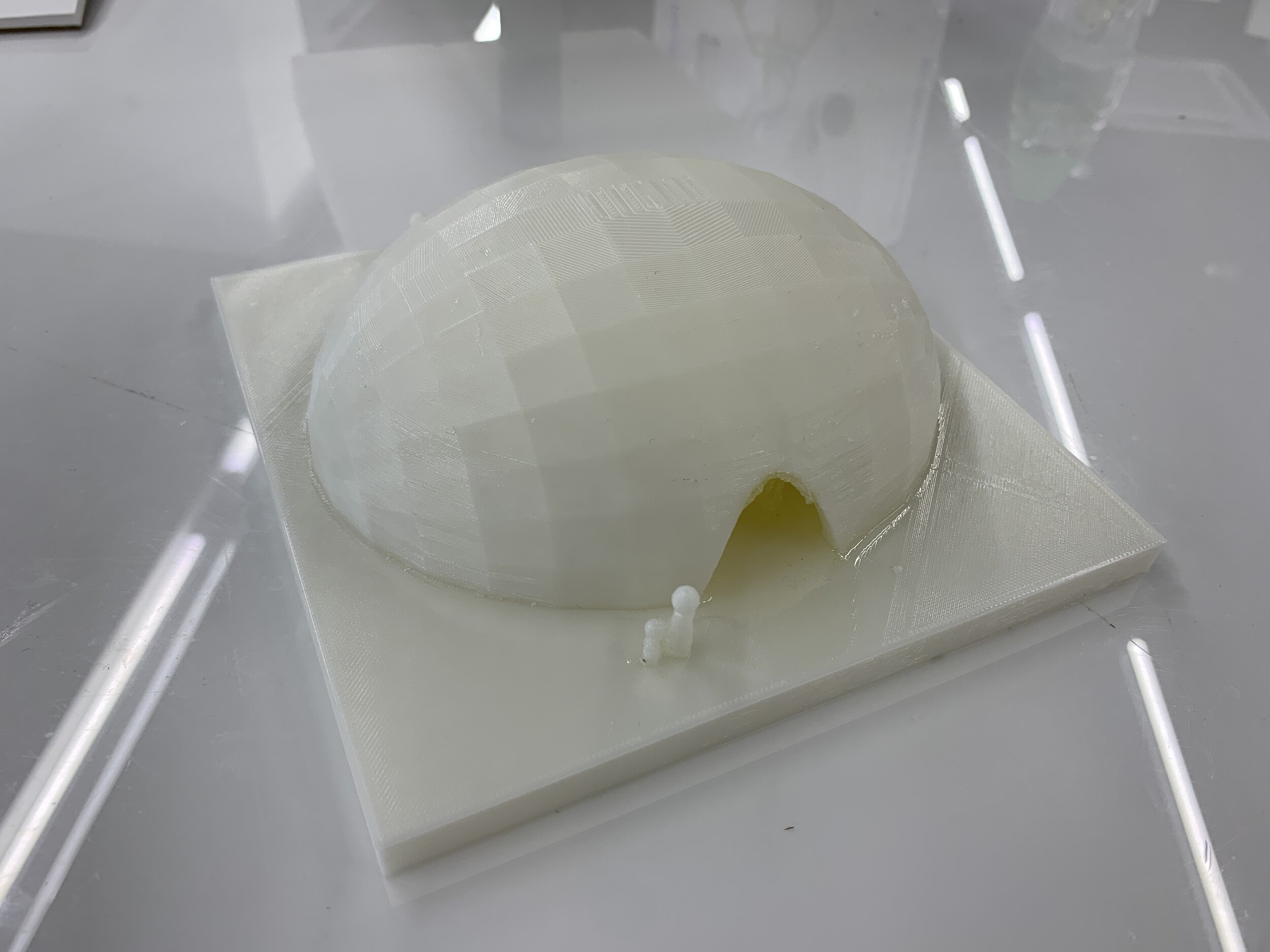

With the help of Rhinoceros, digital 3D models are constructed in a very early state. The first one is a very neat overview of the dome structure in about 1:50 scale. As the 3D printer provided by the University do not handle transparent materials, this model does not meet my expectations.

The second one is an advanced version which involves more zones and movement of audiences. And the structuring of the dome is considered more realistic as pillars were taken into consideration.
